OpenAPI — The Contract Behind APIs, Documentation and AI Agents

Every API with documentation nobody trusts has the same root cause. Someone wrote it by hand, in a wiki page or a Word doc, and it went stale the first time an endpoint changed. Nobody updated it, because updating documentation manually is the first thing everyone deprioritises under deadline pressure.

OpenAPI removes that choice. You describe your API once, in a single machine-readable file, and everything downstream — the docs your developers read, the SDK your partner generates, the tests your pipeline runs, increasingly the tools an AI agent calls — gets built from that same file.

This post covers what OpenAPI actually is, why it is not the same thing as Swagger, what changed in the current version, and why it has quietly become the thing AI agents depend on to use your API at all.

🔗 Related Reading

This post builds on What Is an API? — How Software Systems Talk to Each Other and REST API Design Principles. If terms like endpoint, resource or HTTP method are new to you, start there first.

What OpenAPI actually is — and why “Swagger” confuses everyone

An OpenAPI document is a YAML or JSON file that describes an HTTP API — every endpoint, every request and response shape, every authentication method — in one place. It is written so both a human and a piece of software can read it and understand exactly what the API does, without ever looking at the source code.

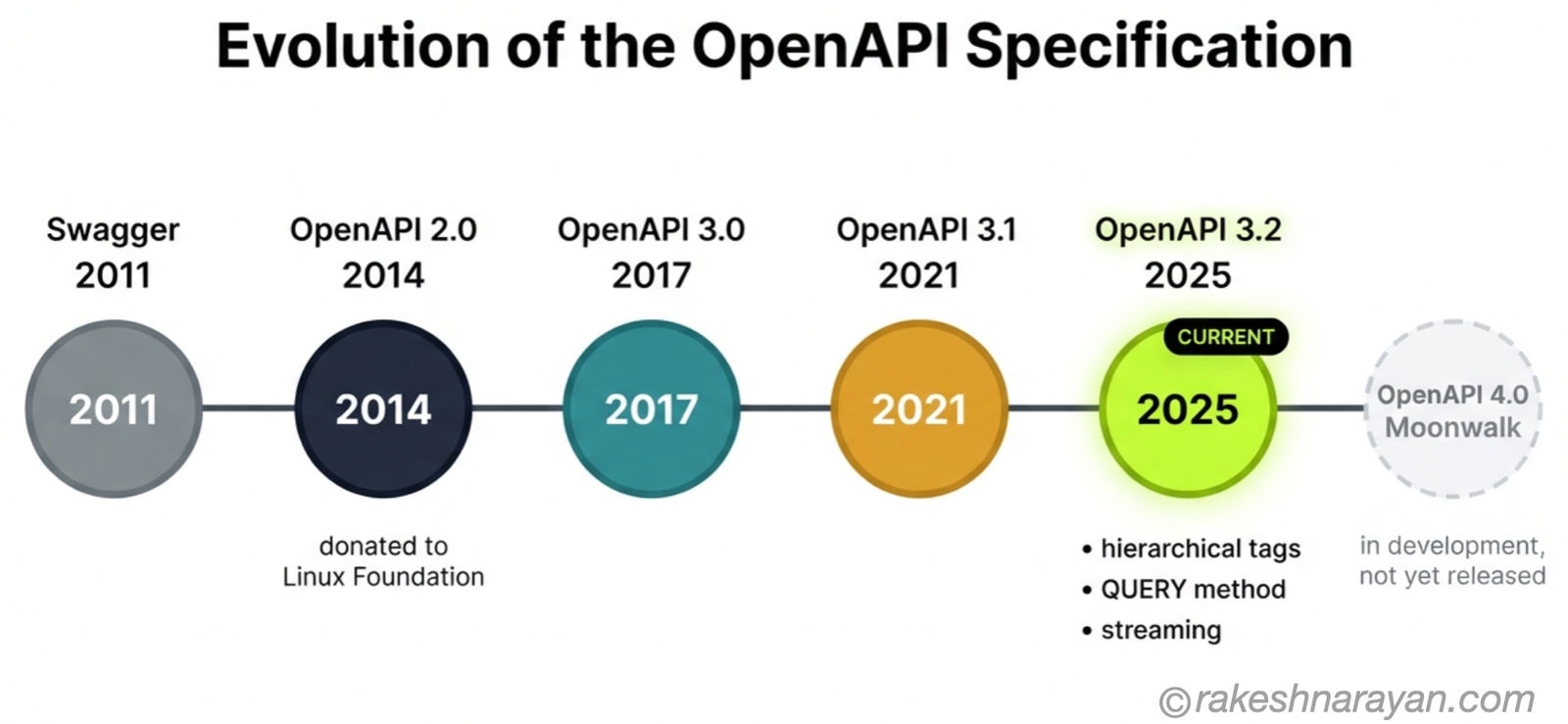

The naming confusion has a real history. Swagger started in 2011 as an open-source tool from a company called Wordnik, later acquired by SmartBear.

In 2014, the specification itself was donated to a new vendor-neutral home — the OpenAPI Initiative, now part of the Linux Foundation — and was renamed OpenAPI. Swagger did not disappear. It became SmartBear’s brand for the tools that implement the spec: Swagger UI, Swagger Editor, Swagger Codegen.

So when someone says “we use Swagger,” they usually mean they write an OpenAPI document and render it with SmartBear’s tools. The spec is OpenAPI.

Swagger is one vendor’s toolset for using it — a very popular one, but not the only one. Redocly, Stoplight and Postman all read the same OpenAPI file.

📌 Key Takeaway

OpenAPI is the specification. Swagger is a toolset brand built on top of it. The two get used interchangeably in job specs and client conversations, and it causes more confusion than it should.

One honest limitation worth stating up front: OpenAPI describes REST-style, HTTP-based APIs. It is not universal across every API style.

GraphQL has its own schema language, and gRPC uses Protocol Buffers. If your API is REST, OpenAPI is close to the industry default. If it is not, you need a different tool entirely.

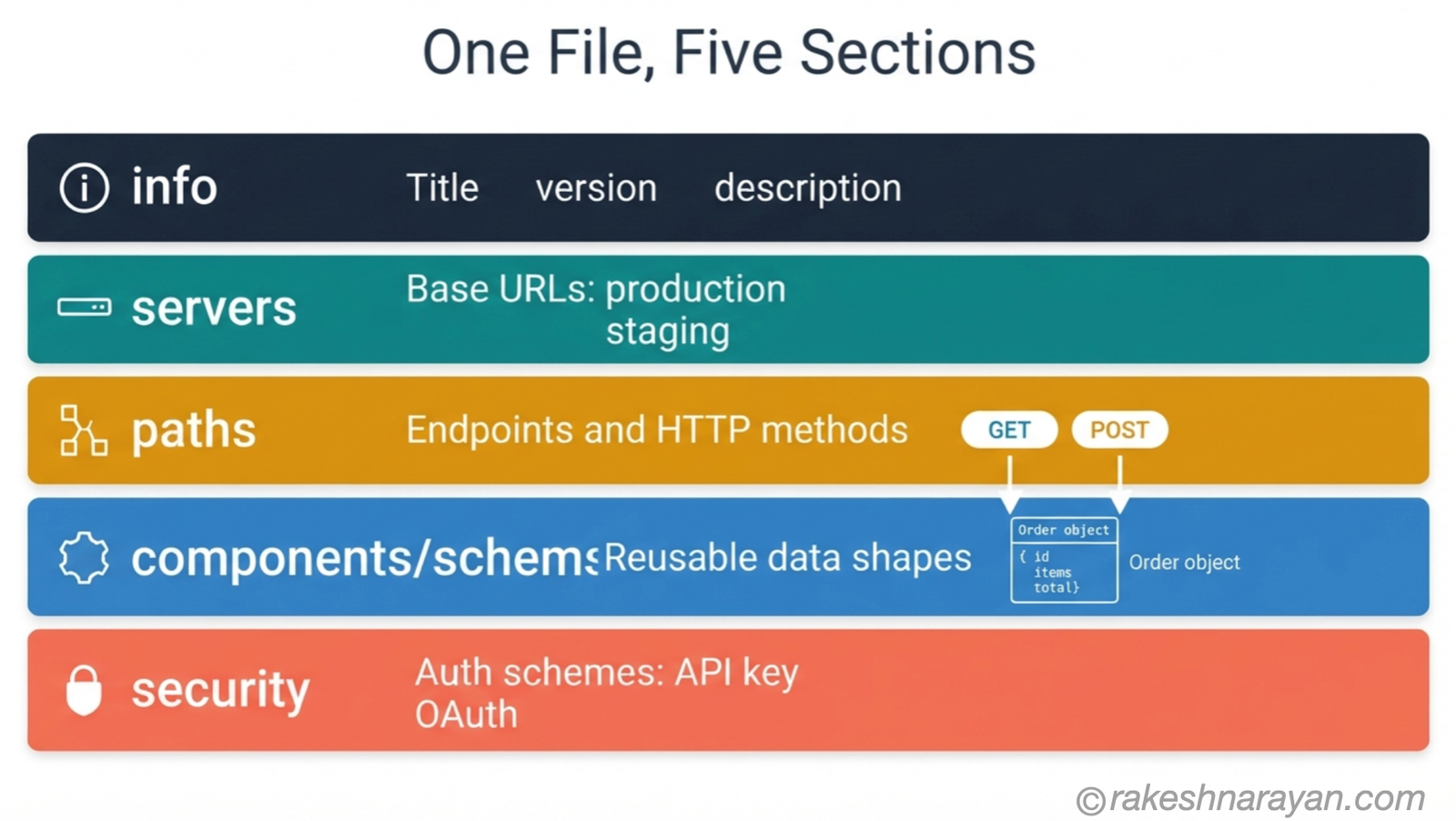

The anatomy of an OpenAPI document

Strip away the tooling and an OpenAPI document is built from a small number of sections, each doing one job.

Section	What it defines
info	The API’s name, version and description — the metadata a consumer sees first
servers	The base URLs where the API actually runs — production, staging, sandbox
paths	Every endpoint and the HTTP methods it supports — GET /orders, POST /orders and so on
components/schemas	Reusable data shapes — an Order object defined once, referenced everywhere it appears
security	The authentication schemes the API accepts — API key, OAuth 2.0, bearer token

openapi: 3.2.0
info:
  title: Orders API
  version: 1.0.0
paths:
  /orders/{orderId}:
    get:
      summary: Retrieve an order
      parameters:
      - name: orderId
        in: path
        required: true
        schema:
          type: string
      responses:
        '200':
          description: Order found
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Order'

That one file is enough for a tool to generate an interactive documentation page, a typed client SDK and a set of contract tests, without a developer writing any of those three things by hand.

From spec to documentation — the tooling that reads it

This is the part that makes OpenAPI worth the upfront effort. Once the document exists, tools generate everything else from it automatically, and they stay correct because they are regenerated every time the spec changes.

Output	Tool examples	What it replaces
Interactive documentation	Swagger UI, Redoc, Stoplight	A hand-maintained docs page that always lags behind the real API
Client SDKs	OpenAPI Generator, Swagger Codegen	Developers hand-writing HTTP calls and guessing at field names
Mock servers	Prism, Postman	Waiting for the real backend to be ready before frontend work can start
Contract tests	Dredd, Schemathesis	Manually checking that responses match what the docs promised

💡 Practical Tip

Validate your OpenAPI document in CI, on every pull request. A spec with a typo in a field name is worse than no spec at all, because everything downstream — docs, SDKs, tests — inherits the mistake silently.

What’s new in OpenAPI 3.2

The current version is OpenAPI 3.2.0, released in September 2025. It is a fully backward-compatible update to 3.1 — every valid 3.1 document is still valid, you just change the version number and adopt new features at your own pace.

Three additions are worth knowing about. Hierarchical tags let you group large APIs into nested categories for navigation, replacing vendor extensions like Redocly’s x-tagGroups that people were already bolting on informally.

The new QUERY method gives you an idempotent, cacheable way to send complex search criteria in a request body, instead of stuffing it into a GET URL or misusing POST. Streaming responses — Server-Sent Events, JSON Lines — finally get first-class support instead of being described as a vague application/octet-stream and a paragraph of prose.

OAuth 2.0’s Device Authorization Flow is now part of the spec too, along with a way to mark old security schemes as deprecated rather than silently deleting them.

⚠️ Warning

If you have seen mentions of “OpenAPI 4.0,” that version does not exist yet. A future major version, known during development as “Moonwalk,” is still being worked on. 3.2.0 is the current, production-ready spec.

Design-first vs code-first

Every team building an OpenAPI-described API eventually picks a side, whether they realise it or not.

Approach	How it works	Best for
Design-first	Write the OpenAPI document before writing any code, then generate server stubs from it	External-facing APIs, partner integrations — anywhere the contract must be agreed before backend work starts
Code-first	Write the code first, annotate it, and generate the OpenAPI document from those annotations	Internal APIs, fast-moving teams — situations where the spec must never drift from what the code actually does

I lean design-first for anything a partner or another team depends on. Agreeing the contract before anyone writes a line of backend code catches shape disagreements early, when they cost a conversation instead of a rewrite.

Code-first has one advantage design-first can’t fully match: the spec is generated from the real code, so it cannot drift. The trade-off is that your API’s shape ends up following whatever your framework naturally produces, rather than what you deliberately designed.

✅ Best Practice

Whichever approach you pick, put spec validation in your CI pipeline. Design-first specs drift if nobody checks the implementation against them. Code-first specs are only as good as the annotations developers remember to write.

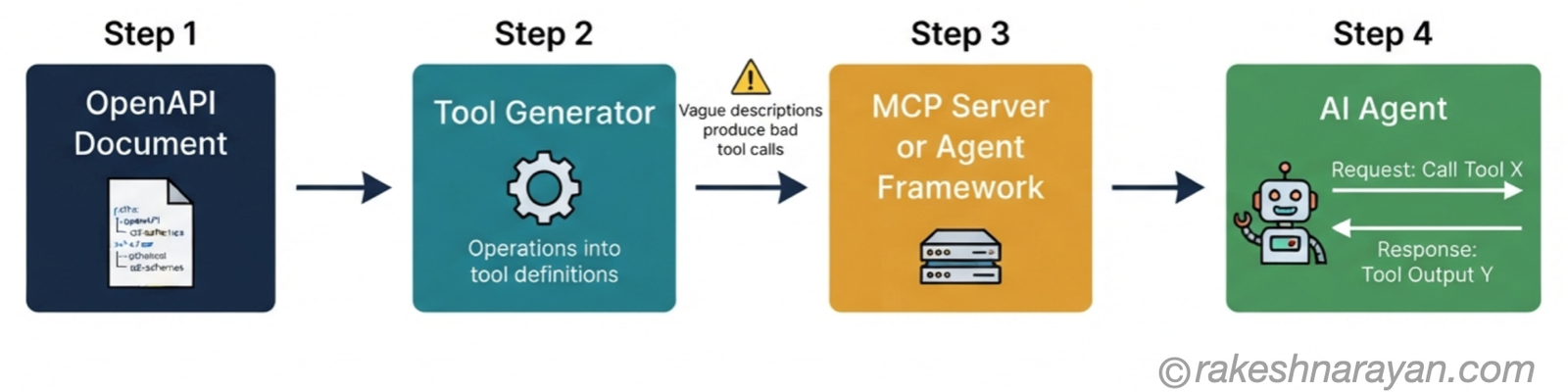

OpenAPI and AI agents — why this matters more in 2026

This is the part that has changed the stakes on writing a good OpenAPI document. AI agents that call APIs on your behalf — through frameworks built on tool-calling, and increasingly through MCP servers — need a structured description of what an API can do before they can use it at all.

OpenAPI already provides exactly that shape: named operations, typed parameters, described responses. It turns out the same file that generates your documentation and your SDK also generates a usable tool definition for an AI agent, with very little extra work.

I covered the mechanics of this in the MCP post and the AI Agents post — the short version here is that your OpenAPI document has quietly become more than internal tooling. It is becoming the interface other software, including AI software, uses to decide whether and how to call your API.

📝 Note

A description field that was “good enough” for a human skimming your docs is often not good enough for an agent. A human infers intent from context. An agent mostly has the words in your spec. Vague parameter descriptions that never caused a problem before can now produce genuinely wrong tool calls.

Common documentation mistakes

Mistake	What happens	Fix
Spec drifts from the real API	Docs describe a field that no longer exists, or miss one that does	Generate the spec from code, or validate it against real responses in CI
No examples on schemas	Developers guess at date formats, enum values and required fields	Add a concrete example value to every schema, not just a type
Only the 200 response is documented	Integrations break the first time a real error occurs	Document 4xx and 5xx responses with the same care as success responses
Security schemes described vaguely	Partners cannot work out how to get a valid token	Use full security scheme objects — specify the OAuth flow, scopes and token URL
Docs treated as a one-time deliverable	Same complaints resurface every few months	Put the spec in version control and review it in the same pull request as the code change

At a glance — OpenAPI essentials

Concept	One-line summary
OpenAPI (OAS)	The machine-readable format that describes an HTTP API’s endpoints, schemas and security in one file
Swagger	SmartBear’s toolset brand — Swagger UI, Editor, Codegen — built on top of the OpenAPI spec, not the spec itself
OpenAPI document	The single YAML or JSON file that is the source of truth an API is described from
Design-first	Writing the spec before the code — best when an external team depends on the contract
Code-first	Generating the spec from annotated code — cannot drift from what the code does
OpenAPI 3.2	The current version, released September 2025 — hierarchical tags, the QUERY method, streaming support, fully backward-compatible
OpenAPI 4.0	Does not exist yet — a future major version (“Moonwalk”) is still in development
Contract testing	Automatically checking that real API responses match what the spec promises
Scope limit	OpenAPI describes REST/HTTP APIs — GraphQL and gRPC use their own separate schema systems
AI agent tool generation	Frameworks and MCP servers turning OpenAPI operations directly into callable tools for AI agents

What to take away

OpenAPI is not documentation about your API. It is the contract your API makes, and documentation is just one of several things generated from that contract.

Once that clicks, a lot of decisions get easier. If your team maintains a docs page and a spec as two separate artifacts, you already have the bug that causes stale documentation — there is only supposed to be one source of truth, and everything else is downstream of it.

The AI agent piece is not a separate trend to bolt on later. It is the same discipline — write an accurate, well-described contract once — paying off in a place nobody was optimising for a few years ago.

Write the spec properly and you are not just documenting an API. You are making it usable by whatever reads it next, human or otherwise.
